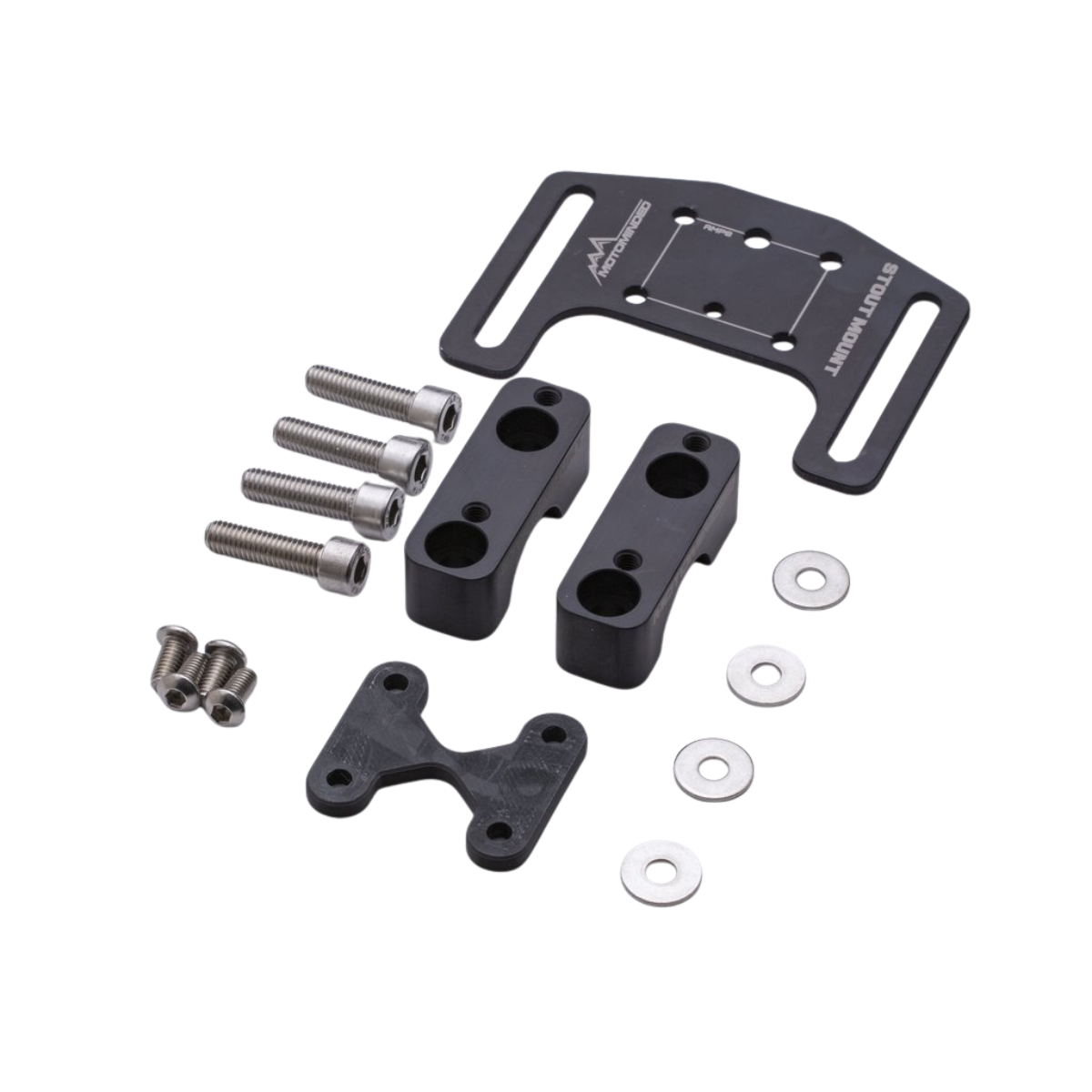

The STOUT MOUNT has become a favorite product of ours and is a Universal GPS / device mount that provides a near universally adjustable and unbreakable mount for your Trail Tech Voyager, Garmin Montana or any device with the AMPS bolt pattern.
The flush type sits *on top* of your existing bar top clamps and your existing (4) bar clamp bolts are removed and the provided longer stainless bar clamp bolts are installed in their place. The bar bracket type has you removing the existing bar top clamps and the stout mount takes their place. You can re-use the existing bar clamp bolts or use the provided stock length stainless bolts in their place.
The horizontal top plate where you'll mount your device comes in spacing of 90mm x 40mm or 100mm x 40mm.
The stock KTM, Husqvarna, Husaberg bar spacing on all 12+ 125-701cc bikes is 90x40.
The stock Honda CRF450L 2018-2019 bar spacing is 106X40.
If you have a GPR stabilizer system on your bike the spacing is 100x40 and we recommend using the bracket type NOT the flush mount. GPR V5 Damper - 106x40
If you have a BRP rubber mount Scott's stabilizer system on your bike the spacing is 90x40.
If you have some other system measure your bolt spacing to find the plate that you'll need or call before ordering to confirm fitment.
NOT RECOMMENDED FOR PDHS SYSTEMS
- 4 different mounting positions
- 20 mm of fore and aft adjustment
- Works with any device using the AMPS pattern
- Limited Lifetime Warranty.
- Anodized aluminum top plate
- CNC aluminum billet side mounts
- M8 Stainless Bar Clamp Bolts
NOTE: refer to bike specs for bar clamp torque values
